Simplified IBD US Severity Assessment

Based on bowel wall thickness, Doppler activity, wall stratification, inflammatory fat, and complication features.

Ultrasound Findings

Bowel wall thickness
Measure the most abnormal segment perpendicular to the wall
mm
Doppler activity
Higher vascularity supports active inflammation
Wall stratification
Loss of layering suggests deeper inflammation
Inflammatory fat / fat wrapping
Hyperechoic mesenteric fat adjacent to the involved segment
Mesenteric lymph nodes
Complication features
Stricture, fistula, abscess, phlegmon, or marked prestenotic dilation
Severity Reference
Feature Mild Moderate Severe
BWT >3–4 mm Thicker Very thick
Doppler None / minimal Focal Diffuse ± mesenteric
Stratification Preserved Partial loss Complete loss
Fat None Mild Marked
Bowel Wall Thickness
Mild>3–4 mm
ModerateThicker
SevereVery thick
Doppler
MildNone / minimal
ModerateFocal
SevereDiffuse ± mesenteric
Wall Stratification
MildPreserved
ModeratePartial loss
SevereComplete loss
Inflammatory Fat
MildNone
ModerateMild
SevereMarked

How to do it

  • Fasting ~6–8 hrs (optional but improves views)
  • Supine positioning
  • Use curvilinear (deep) + linear (high-res) probes
  • Scan systematically: terminal ileum → proximally or full abdominal sweep

What you measure

  • Bowel wall thickness (BWT)
  • Doppler vascularity
  • Wall stratification
  • Peristalsis + compressibility
  • Luminal narrowing / dilation
  • Extramural findings (fat, nodes, abscess)

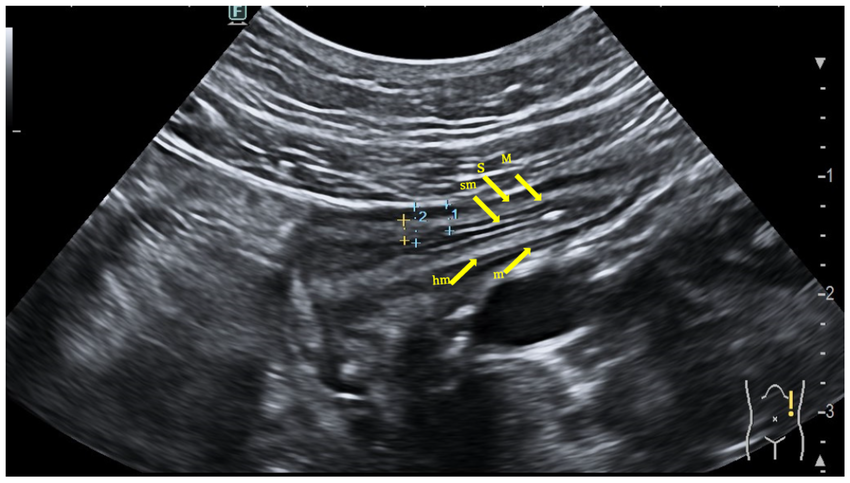

Bowel wall layers

  • Mucosa → submucosa → muscularis → serosa

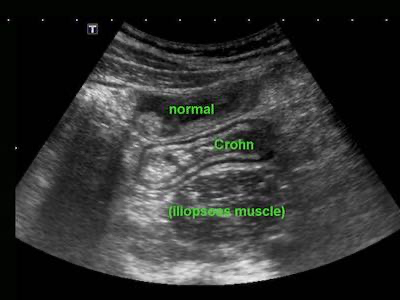

Bowel wall thickness

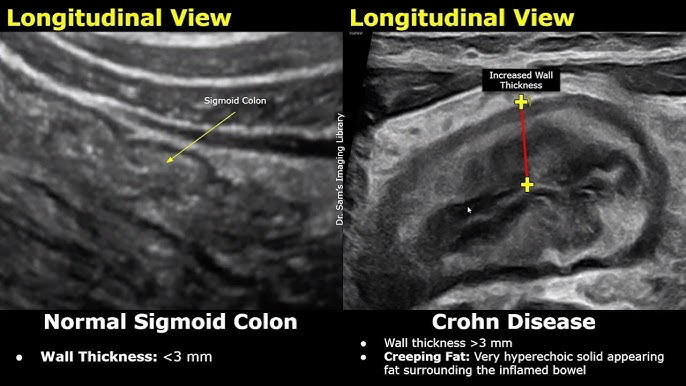

  • Measure perpendicular to wall
  • Longitudinal + transverse views
  • Use most abnormal segment
    • Normal: <3 mm
    • Active inflammation: ≥3 mm

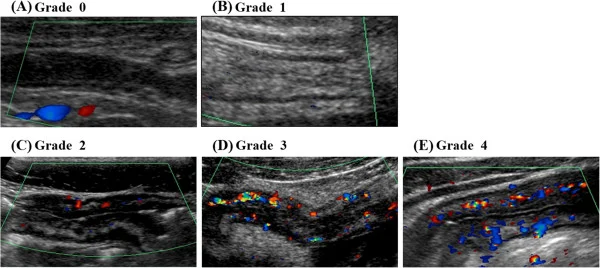

Doppler grading (Limberg)

In general ≥2 = active inflammation

  • 0 → no flow
  • 1 → thickened wall, no flow
  • 2 → spotty flow
  • 3 → diffuse intramural flow
  • 4 → flow into mesentery

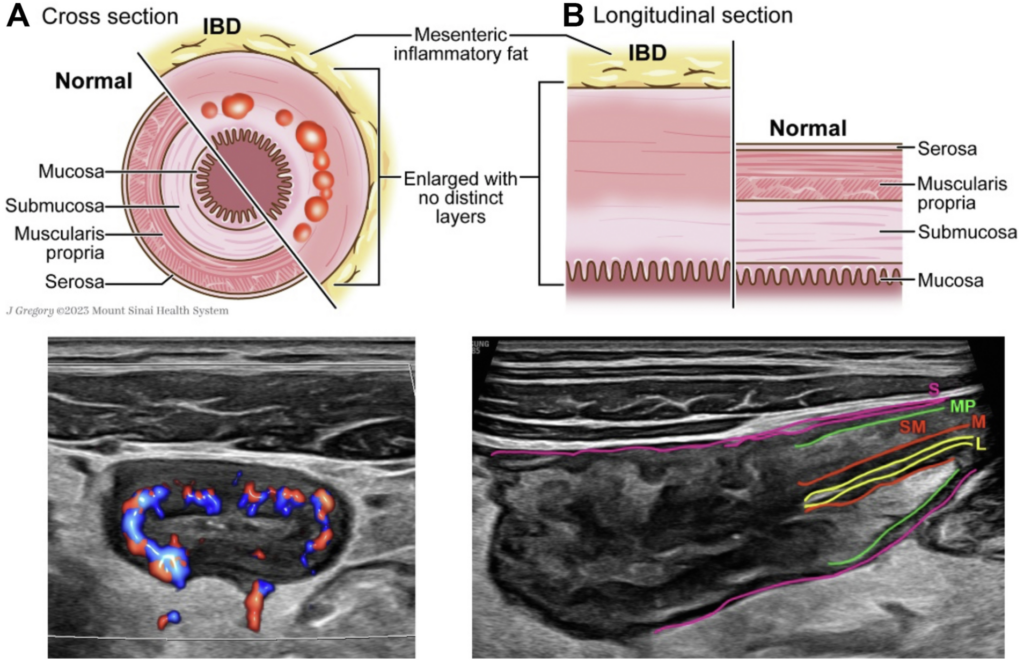

Bowel wall stratification (BWS)

Loss of stratification = deeper, transmural inflammation

  • 0 → normal (clear layered pattern)
  • 1 → uncertain
  • 2 → focal loss ≤3 cm
  • 3 → extensive loss >3 cm

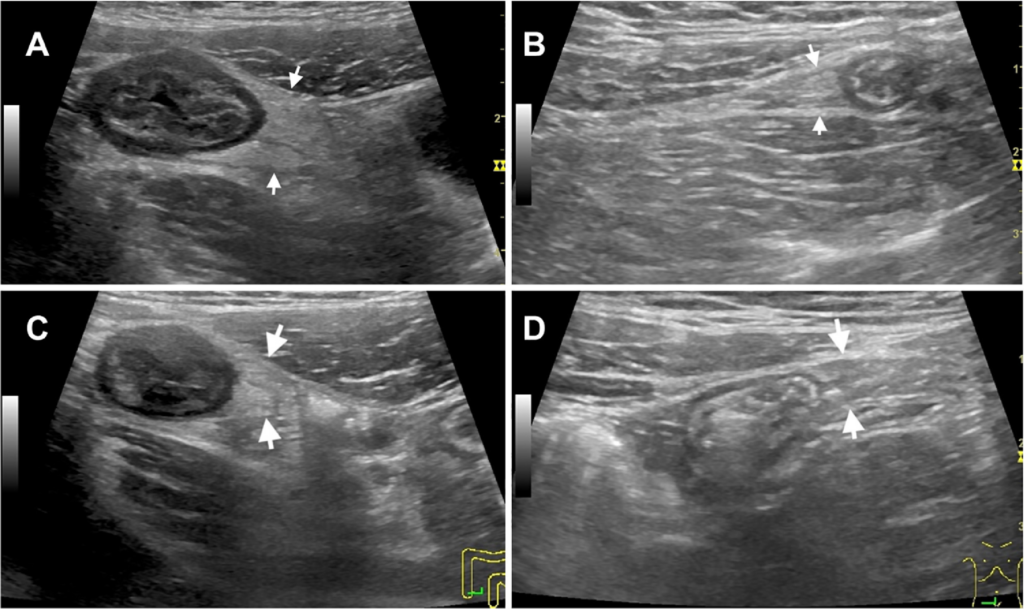

Inflammatory fat (i-fat)

Mesenteric fat hypertrophy adjacent to inflamed bowel (“creeping fat”). Appears hyperechoic surrounding affected segment. It is a marker of transmural inflammation and more common in Crohn's disease. Associated with stricturing and penetrating disease.

  • 0 → absent
  • 1 → uncertain
  • 2 → present

Features of active disease

  • BWT ≥3 mm
  • Increased Doppler signal
  • Loss of wall stratification
  • Inflammatory fat (creeping fat)
  • Mesenteric lymph nodes

Validated Scoring Systems

Ulcerative Colitis

  • Milan Ultrasound Criteria (MUC)
    • MUC = 1.4 × BWT + 2 × Doppler
    • >6.2 → active disease

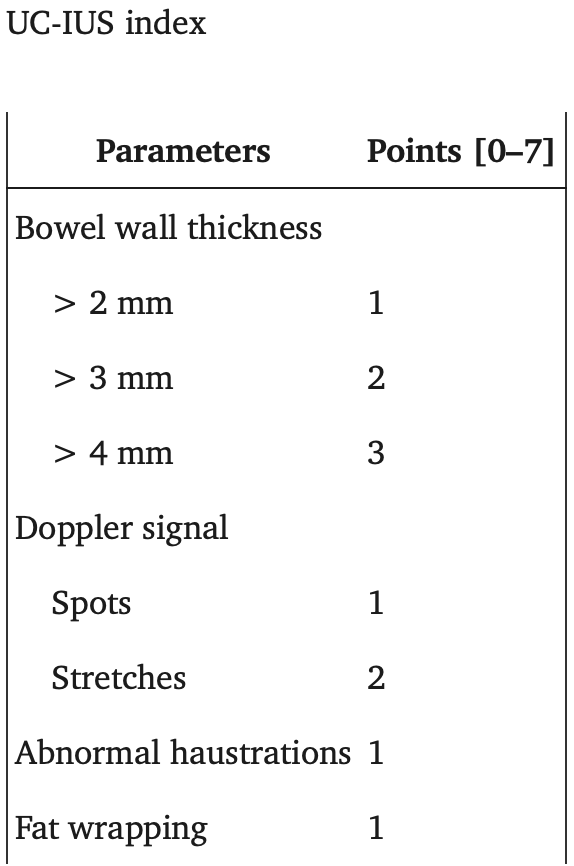

  • UC-IUS index (0-7)
    • BWT
    • Doppler
    • Haustration
    • Fat

Crohn’s disease

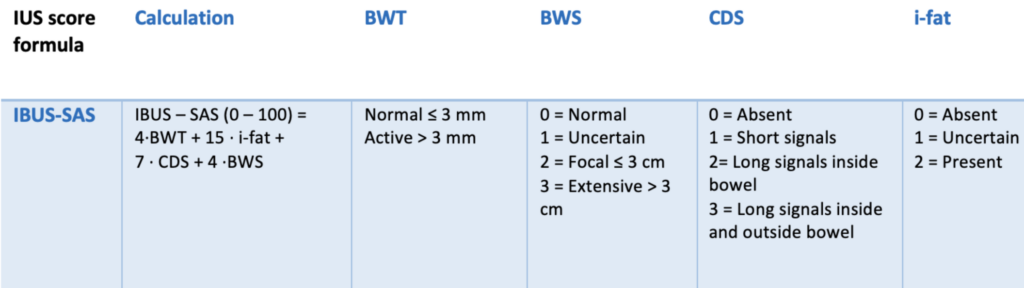

  • IBUS-SAS
    • BWT
    • BWS
    • CDS
    • I-fat
