Cardiac Output

LVOT VTI Cardiac Output

Calculate stroke volume and cardiac output from LVOT diameter and pulsed-wave Doppler VTI.

LVOT Measurements

LVOT diameter
Inner-edge to inner-edge in mid-systole, typically from the parasternal long-axis view
cm
LVOT VTI
Trace the pulsed-wave Doppler envelope just proximal to the aortic valve
cm
Heart rate
Use the heart rate corresponding to the measured VTI
bpm

Cardiac Index

Calculate cardiac index
Adds body surface area and indexes cardiac output to body size
Height
cm
Weight
kg
Reference & Equations
Parameter Typical reference
LVOT VTI Approximately 18–22 cm
Low LVOT VTI <18 cm suggests reduced forward stroke distance
Stroke volume Approximately 60–100 mL
Cardiac output Approximately 4–8 L/min
Cardiac index Approximately 2.5–4.0 L/min/m²
Low cardiac index <2.2 L/min/m² is commonly used as a low-output threshold
LVOT area = π × (LVOT diameter ÷ 2)²
Stroke volume = LVOT area × LVOT VTI
Cardiac output = stroke volume × heart rate ÷ 1000
BSA = √[(height × weight) ÷ 3600]
Cardiac index = cardiac output ÷ BSA

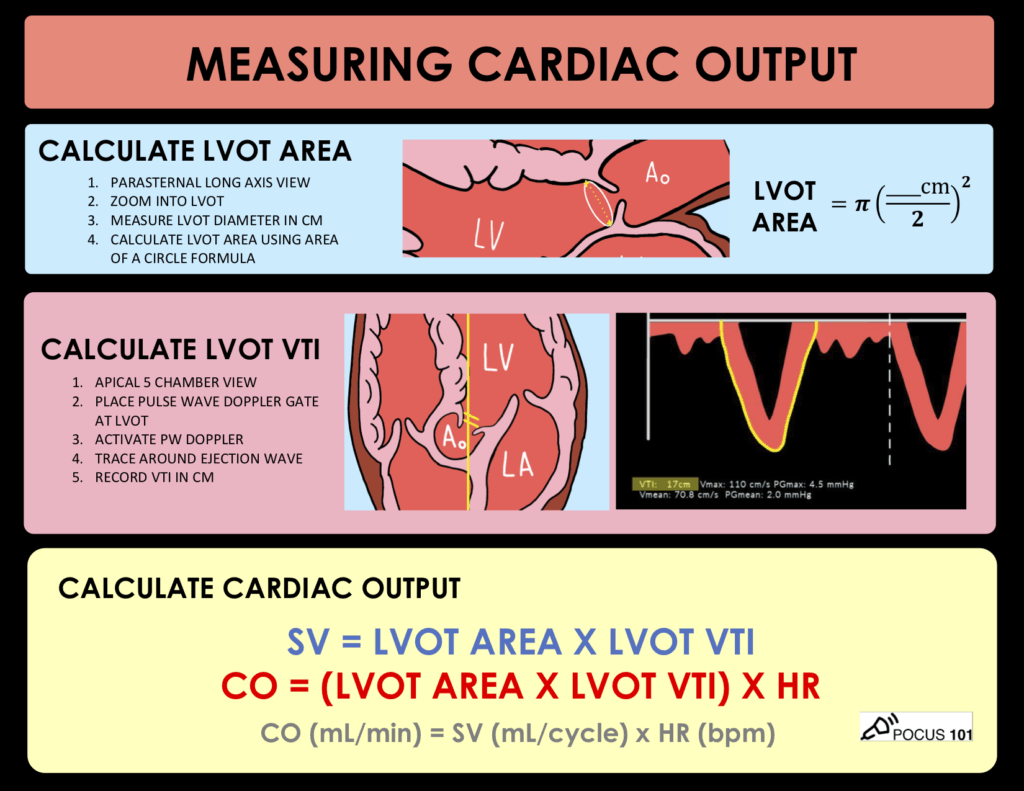

LVOT VTI to Measure Cardiac Output

LVOT Area = π × (LVOT diameter / 2)²

Units

  • Diameter in cm
  • VTI in cm
  • SV in mL
  • CO in L/min

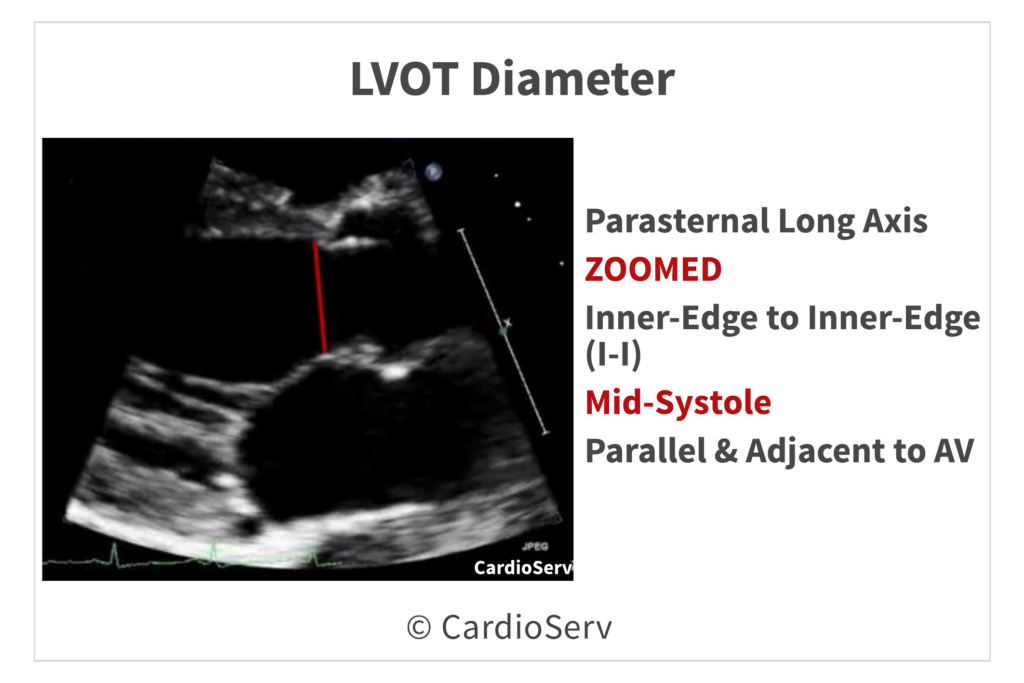

Step 1: Measure LVOT Diameter

View: Parasternal long axis
Timing: Mid systole
Method: Inner edge to inner edge
Location: Just proximal to the aortic valve annulus

Diameter is squared in the equation. Small measurement errors create HUGE CO errors.

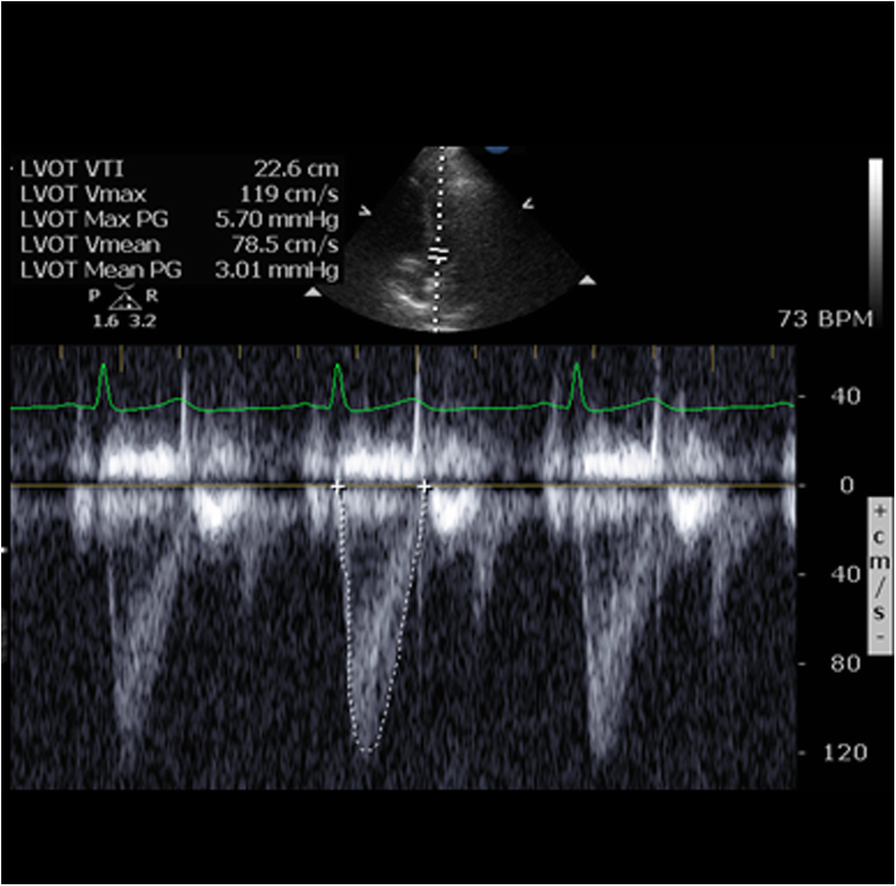

Step 2: Measure LVOT VTI

View: Apical 5 chamber (usually best) or apical 3 chamber
Doppler: Pulsed wave

How to do it

  1. Place PW Doppler sample gate 0.5 to 1.0 cm proximal to the aortic valve, on the LV side.
  2. Align Doppler beam as parallel to LVOT flow as possible.
  3. Increase sweep speed.
  4. Trace the outer edge of the Doppler envelope.
  5. Average:
    • 3 beats in sinus rhythm
    • 5 to 10 beats in atrial fibrillation

Step 3: Calculate Stroke Volume

  • Stroke Volume = LVOT Area × LVOT VTI

Step 4: Calculate Cardiac Output

  • CO = SV × HR
